Single-, dual-, triple- and four-circuit heat exchangers on one platform, sized from 5 HP to 25 HP per circuit. The circuit count drives the tube-sheet layout, so the same shell diameter carries two to four independent refrigerant paths.同一平台上提供单、双、三、四回路换热器，单回路适配 5 HP 至 25 HP。回路数量决定管板排布，同一筒体直径下可承载二至四条独立制冷剂通路。
One shell, one duty, built to the compressor it serves一种筒体，一种工况，按所配压缩机定制
Single-, dual-, triple- and four-circuit heat exchangers on one platform, sized from 5 HP to 25 HP per circuit. The circuit count drives the tube-sheet layout, so the same shell diameter carries two to four independent refrigerant paths.同一平台上提供单、双、三、四回路换热器，单回路适配 5 HP 至 25 HP。回路数量决定管板排布，同一筒体直径下可承载二至四条独立制冷剂通路。
Every figure on this page is transcribed from the manufacturer's catalogue. Where a value was not published, it is marked as to be confirmed rather than estimated.本页所有数据均取自厂家画册。画册未公布的项目一律标注为待确认，不作估算。
How it is put together, and what plugs in where如何构成，以及各接口的位置
One shell carrying one to four independent refrigerant circuits, sized 5 to 25 HP each. The tube sheet layout changes with the circuit count while the shell diameter stays common.单一筒体承载一至四条独立制冷回路，单回路 5 至 25 HP。随回路数量调整管板排布，筒体直径保持通用。
Vent and drain connections let the water side be emptied and purged in place, so the unit does not have to be lifted out for routine cleaning.排气与排污接口使水路可现场排空与冲洗，日常清洗无需吊装机组。
Every published model, 2 in this series本系列共公布 2 个型号
Capacity, dimensions, nozzle sizes and weight — the complete table as published. Scroll it sideways on a narrow screen; the header stays in place.制冷量、外形尺寸、管口尺寸与重量 —— 画册公布的完整参数表。窄屏下可横向滚动，表头固定。
| Model型号 | HP压缩机功率 | AA | BB | CC | DD | EE | FF | GG | a1/a2a1/a2 | b1/b2b1/b2 | a3a3 | a4a4 | b3b3 | b4b4 | Weight重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HY-WSCS5A | 5HP | 1000 | 600 | 730 | 800 | 800 | 165 | 165 | 1-1/2" | 1-1/2" | 16 | 16 | 22 | 16 | 50 |
| HY-WSCS15A | 15HP | 1400 | 600 | 730 | 1200 | 1200 | 165 | 165 | 2" | 2" | 28 | 22 | 35 | 25 | 150 |
| Model型号 | HP压缩机功率 | AA | BB | CC | DD | EE | FF | GG | a1/a2a1/a2 | b1/b2b1/b2 | a3a3 | a4a4 | b3b3 | b4b4 | Weight重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HY-WSCS5A | 5HP | 1000 | 600 | 730 | 800 | 800 | 165 | 165 | 1-1/2" | 1-1/2" | 16 | 16 | 22 | 16 | 50 |
| HY-WSCS15A | 15HP | 1400 | 600 | 730 | 1200 | 1200 | 165 | 165 | 2" | 2" | 28 | 22 | 35 | 25 | 150 |
| Model型号 | HP压缩机功率 | AA | BB | CC | DD | EE | FF | GG | a1/a2a1/a2 | b1/b2b1/b2 | a3a3 | a4a4 | b3b3 | b4b4 | Weight重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HY-WSCS10D | 5HP*2 | 1200 | 600 | 730 | 1000 | 500 | 165 | 165 | 1-1/2" | 1-1/2" | 16 | 16 | 28 | 22 | 100 |
| HY-WSCS15D | 7.5HP*2 | 1490 | 600 | 730 | 1200 | 600 | 165 | 165 | 2" | 2" | 22 | 16 | 28 | 22 | 150 |
| HY-WSCS40D | 20HP*2 | 1780 | 740 | 950 | 1500 | 750 | 273 | 273 | 3" | 3" | 28 | 22 | 35 | 22 | 400 |
| HY-WSCS50D | 25HP*2 | 1780 | 740 | 951 | 1500 | 750 | 273 | 273 | 3" | 3" | 28 | 22 | 35 | 22 | 500 |
| Model型号 | HP压缩机功率 | AA | BB | CC | DD | EE | FF | GG | a1/a2a1/a2 | b1/b2b1/b2 | a3a3 | a4a4 | b3b3 | b4b4 | Weight重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HY-WSCS30T | 10HP*3 | 1780 | 740 | 845 | 1500 | 500 | 219 | 219 | 2-1/2" | 2-1/2" | 25 | 19 | 28 | 22 | 300 |
| HY-WSCS36T | 12HP*3 | 2080 | 740 | 845 | 1800 | 600 | 219 | 219 | 2-1/2" | 2-1/2" | 25 | 19 | 28 | 22 | 360 |
| Model型号 | HP压缩机功率 | AA | BB | CC | DD | EE | FF | GG | a1/a2a1/a2 | b1/b2b1/b2 | a3a3 | a4a4 | b3b3 | b4b4 | Weight重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HY-WSCS20F | 5HP*4 | 2280 | 740 | 845 | 2000 | 500 | 219 | 219 | 2" | 2" | 16 | 16 | 22 | 16 | 200 |
Where the series steps up量程如何递进
HY-WSCS5A
HY-WSCS15A

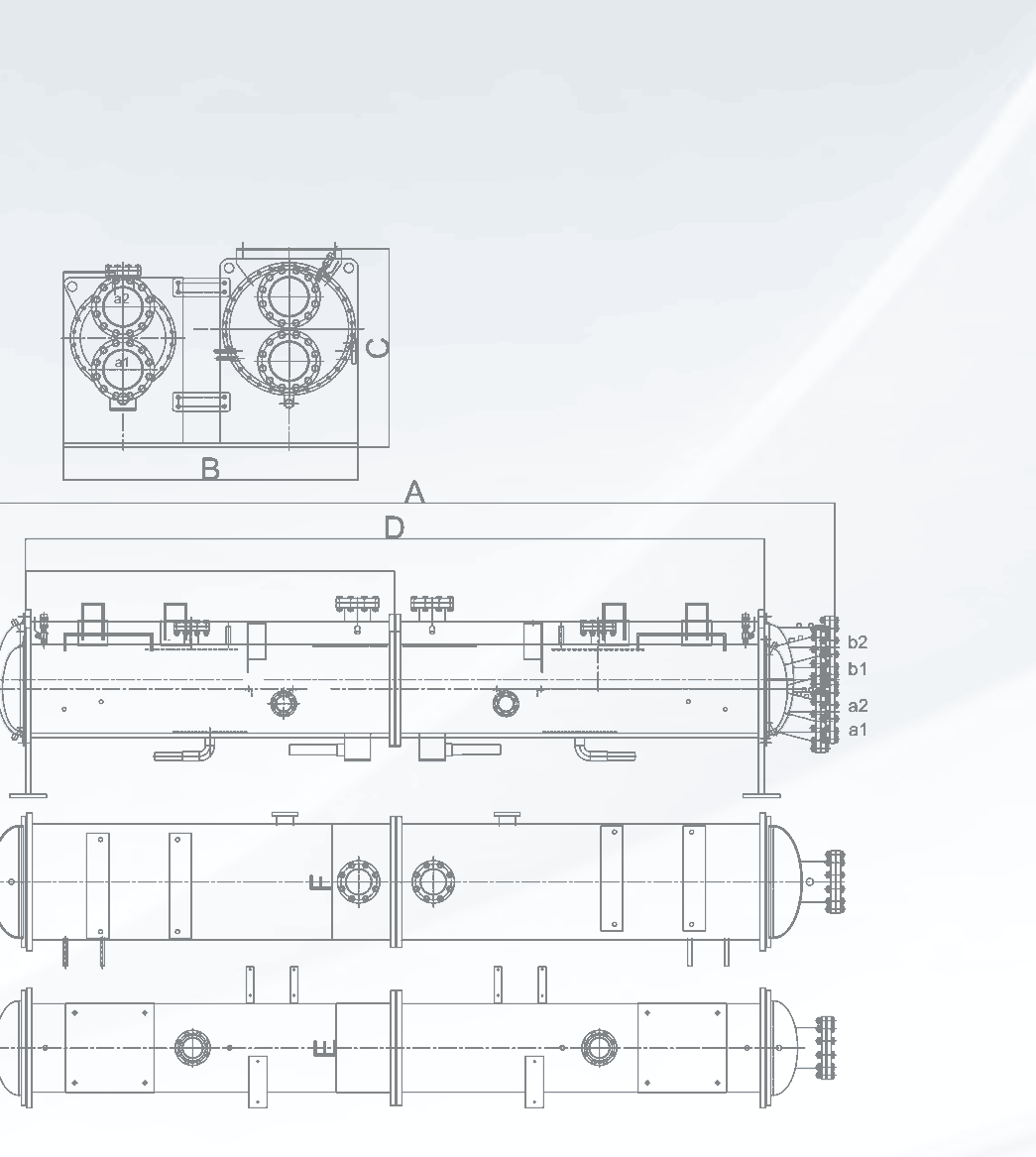

Interfaces, drawn and tabulated接口：图示与表格
Each connection carries the same code on the drawing, in the table above and in the dimension schedule below, so a contractor can read one against the other.每个接口在示意图、上方参数表与下方接口表中使用同一代号，便于施工方互相对照。
Sizes are given exactly as printed: DN, inch or φ. Where the catalogue left a value blank, the field stays blank here.尺寸严格按画册原文标注：DN、英寸或 φ。画册未填的项，此处同样留空。
How to read these numbers如何理解这些数字
- Heat exchange at evaporating temperature 2 °C, inlet water 12 °C, outlet water 7 °C.蒸发温度 2 ℃、进水温度 12 ℃、出水温度 7 ℃ 时的换热量。
- A dimension drawing is not reproduced on this page: the catalogue drawing for this series could not be cropped cleanly enough to be legible. Ask for the original drawing.本页未收录尺寸示意图：该系列在画册中的图纸裁切后清晰度不足，故不采用。如需要请索取原图。
Send us the duty, we will send back a model把工况发给我们，我们回你一个型号
Give the cooling capacity, the working temperatures and the refrigerant, and the selection comes back with a nozzle arrangement and a price.提供制冷量、工况温度与制冷剂，我们会连同管口布置与报价一并回复。
